Legacy Series · U-94/A

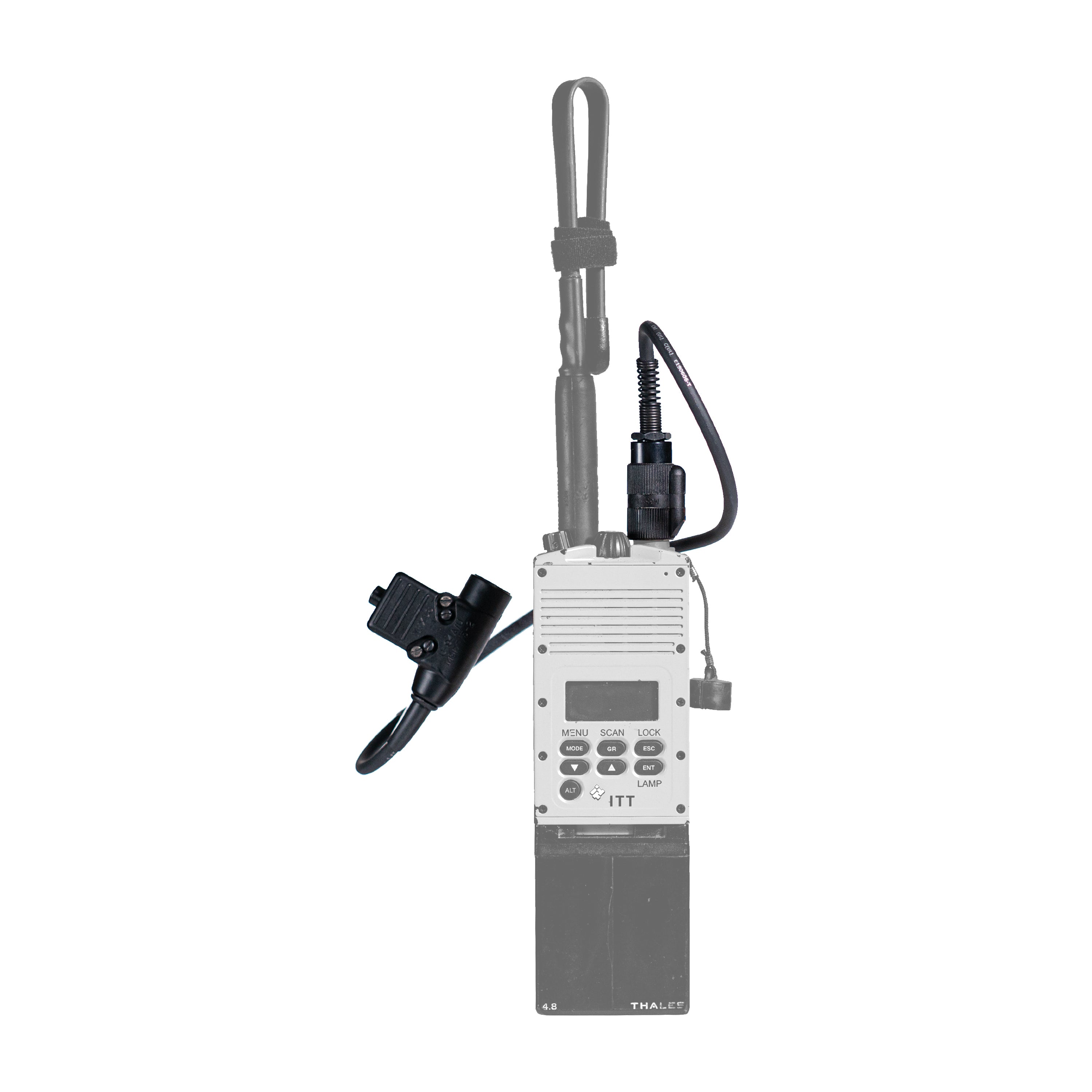

U-94/A — NATO 6-Pin
Genuine U-94/A push-to-talk for military radios with U-329/U (6-pin) or U-229 (5-pin) audio connectors. Dynamic-mic NATO path.
U-174 Headset
Radio Interface: NATO 6-Pin ADF (U-329/U)
Connector: U-329/U 6-pin NATO female jack (MIL-DTL-55116). Cable lengths typically 6″ / 10″ / 20″ / 30″ (select variant).
Verify your radio connector visually before ordering. Headset side is standard NATO U-174/U (TP-101). U-384/U (TP-105 / red rings) needs the TP-105 O-Ring adapter.
Wired for dynamic (~150 Ω) military headsets. No radio menu changes required for standard dynamic NATO headsets.
Compatible Radios
-
📻(MBITR), AN/PRC-148C (JEM/iMBITR)
-
📻AN/PRC-117F, AN/PRC-117G
-
📻AN/PRC-119 (SINCGARS), AN/PRC-150 (HF)
-
📻AN/PRC-113, AN/PRC-154 (Rifleman Radio)
-
📻All radios with U-229 (5-pin) or U-329 (6-pin) audio connectors
Headset & Microphone
This NATO U-94/A is wired for dynamic (low-impedance ~150 Ω) military headsets — Ops-Core AMP, Peltor ComTac, MSA Sordin, OTTO, and similar NATO dynamic mics.
-
✓Dynamic / mil-spec boom mics
-
!Electret / civilian mics: use Constant Able instead
Mil-Spec Build
-
⚡Genuine mil-spec U-94/A assembly
-
🌊IP67 sealed (waterproof / dustproof)
-
🔄Rotating blackened stainless clip
-
🇺🇸Assembled in USA · BAA compliant
