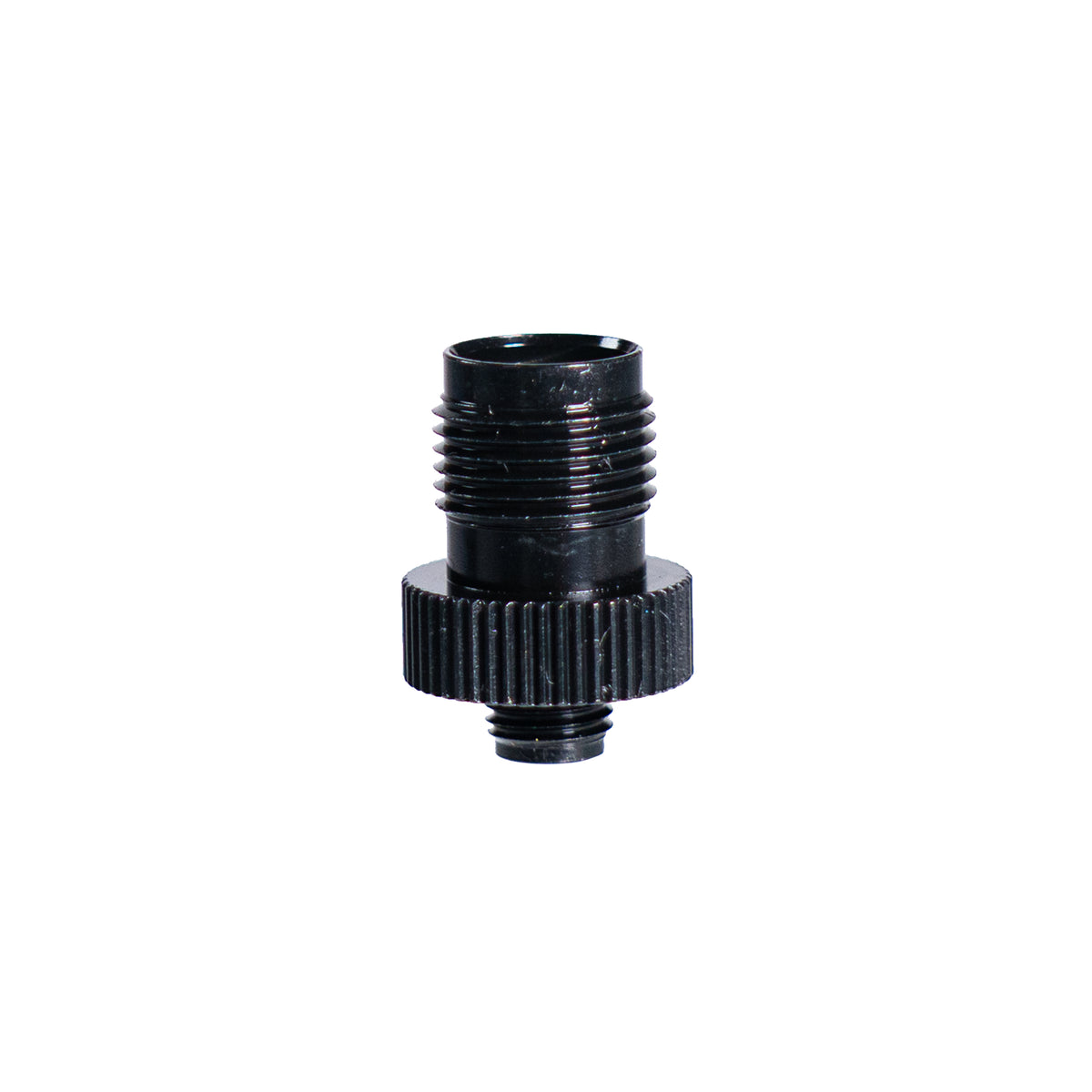

Black TNC Adapter (SMA F)

$10.00

Black Chrome Series

Connects military broadband antennas with TNC-Male connectors to radios with SMA-Male ports. Bridges the gap between mil-spec antenna systems and civilian handhelds.

Connector Configuration

Converts SMA Female to TNC Female. Screws onto the SMA-Male port on Baofeng and similar radios, then accepts TNC-Male terminated military broadband antennas directly — no additional adapters or cables needed.

SMA Gender Note

This adapter fits radios with SMA-Male antenna ports (Baofeng, Wouxun, Anytone). For radios with SMA-Female ports (Yaesu, Icom), use the SMA-M version.

Compatible Radios

Baofeng — UV-5R, UV-82, BF-888S, GT-3, BF-F8HP
Wouxun — KG-UVD1P, KG-UV6D, KG-UV8D
Anytone — AT-D868UV, AT-D878UV
Motorola — XTS/MTX series (SMA-M radio port models)

Common Applications

Attach mil-spec TNC broadband antennas to civilian radios
Use issued military antennas on personal backup radios
Significant range improvement over stock rubber duck antennas
Direct-mount with no intermediate cables

Complete Your Setup

BNC Adapter (SMA F) — For BNC antennas and relocation cables instead of TNC 'Feng Adapter Pack — Complete adapter bundle for Baofeng radios

Specifications

Configuration	SMA Female TNC Female
Impedance	50 Ω
Frequency Range	DC – 11 GHz (TNC rated per MIL-STD-348)
Insertion Loss	< 0.1 dB below 1 GHz
Finish	Black Chrome
Construction	Machined brass, gold-plated center pin
