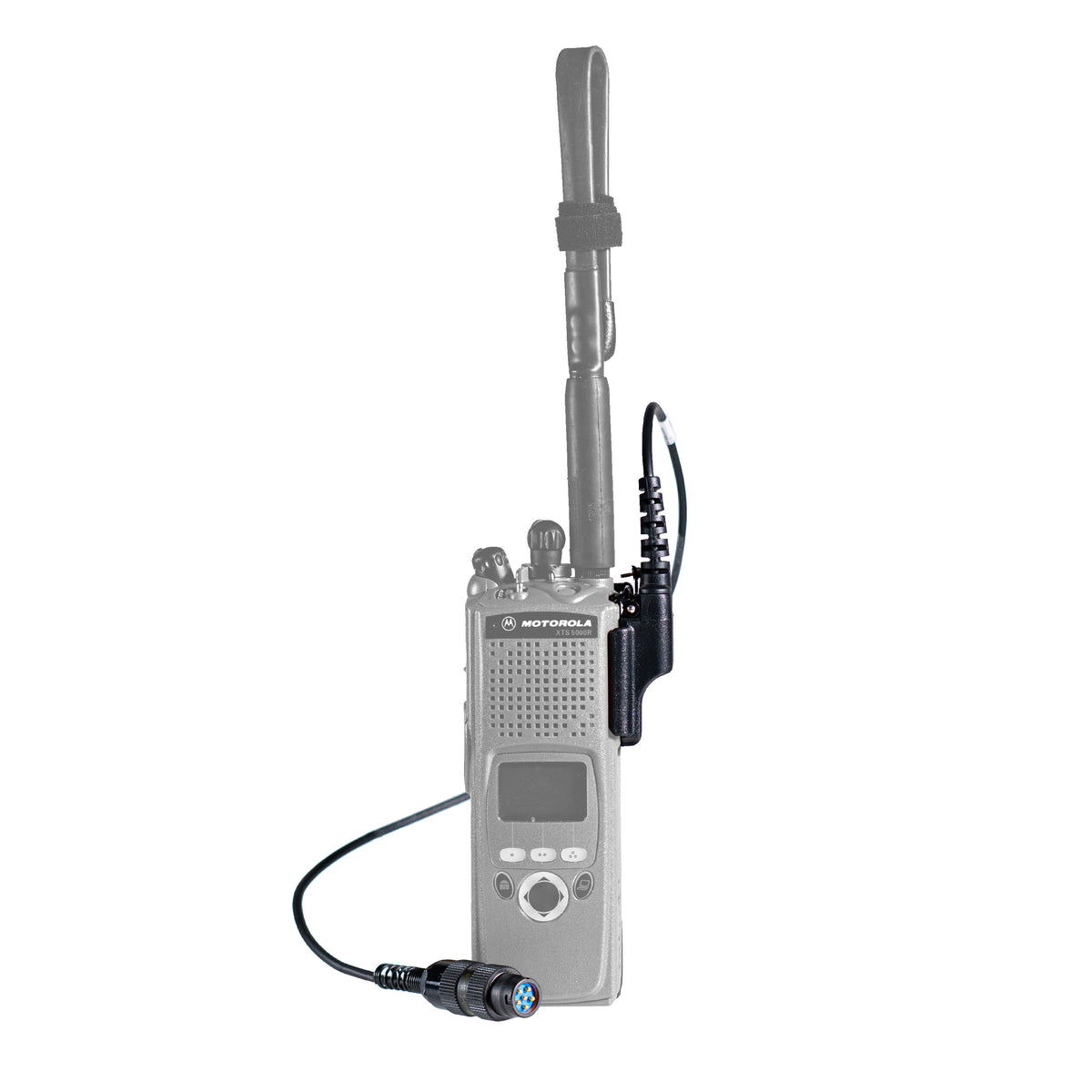

M55116 to XTS

$133.00

Microphone Type

Audio connectivity

Radio Interface Type

6-Pin Adapter

Bridge your mil-spec 6-pin NATO PTT to Motorola XTS-series and legacy multi-pin radios via the M4 Universal Connector.

Signal Chain

Headset Downlead 6-Pin NATO PTT This Adapter Motorola XTS

PTT Side

Input connector (from your PTT):

U-329/U (M55116 6-Pin NATO Female)

Radio Side

Output connector (to your radio):

Motorola M4 (Universal Connector / Multi-Pin)

Dynamic vs. Electret — Which Variant?

Dynamic (Amped)

~150Ω dynamic microphone — requires amplification circuit in the adapter

Headsets: Peltor COMTAC, Ops-Core AMP, MSA Sordin MIL, OTTO NoizeBarrier, Earmor M31/M32

Electret

~2kΩ electret microphone — no amplification needed

Headsets: 3M Peltor LiteCom, commercial/LE electret headsets

Wrong impedance = no transmit audio. Dynamic mics on an electret adapter produce barely audible or silent transmissions. When in doubt, choose Dynamic — most tactical headsets are dynamic.

Compatible Radios (M4 / Universal Connector)

XTS Series (5000, 3500, 2500, 1500)
MTX Series (legacy MTX; Motorola ASTRO 25 catalog emphasizes XTS 1500/2500/3000/5000, MT 1500, PR1500)
HT1000 / MT2000 / MTS2000
EF Johnson (5100, 5300, 51SL)

Warranty

DISCO32 limited warranty — 1 year from original purchase for defects in materials and workmanship under normal use. Support starts with a troubleshooting ticket at help@disco32.com.

Full store policy.
